MPS C2 Sport Line Gas Booster
£3,250.00 + VAT

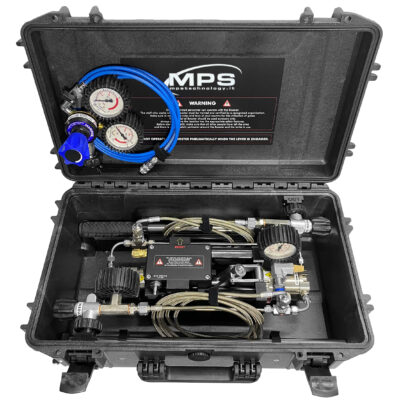

The MPS C2 Sport Line is a powerful all-in-one single acting single stage gas booster system, all you need is inside its case.
Additional information
| Weight | 30 kg |
|---|---|
| Bar | 230 Bar, 310 Bar |
Specifications
Technical data
AIR DRIVEN GAS BOOSTER SINGLE ACTING – SINGLE STAGE
TRANSMISSION RATIO: 1:25
MAX DRIVE AIR PRESSURE: 10/13 Bar – 145/190 psig
DISPLACEMENT: 19 cc
MAX OUT PRESSURE: 230 Bar – 3335 psig / 310 Bar – 4500 psig
MIN SUCTION PRESSURE: 5 Bar
AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4″
AIR DRIVE REGULATOR: HP and LP gauges, Speed Adjust Valve, 3 m Tube with Micro Quick Connection 1/4″, DIN 300
AIR DRIVE HOSE LENGTH: 3 m
GAS INLET CONNECTION : 3 m Stainless Steel Braid Hose, Filter, 40 mm 0-400 Bar Gauge, DIN 300 connection
GAS OUTLET CONNECTION: 3 m Stainless Steel Braid Hose, Purge Valve, 63 mm 0-400 Bar Gauge, DIN 300 connection
WEIGHT: 9.7 Kg
DIMENSIONS: 46.4 x 36.6 x 17.6 cm
MAIN FEATURES:
OXYGEN SERVICE
Technopolimer Water/Dust proof Transport Case
All-in-one filling system
Versions
C2 230 Bar
C2 310 Bar
