Additional information
| Weight | 100 kg |
|---|
Coltri Smart 210
£5,095.00 + VAT

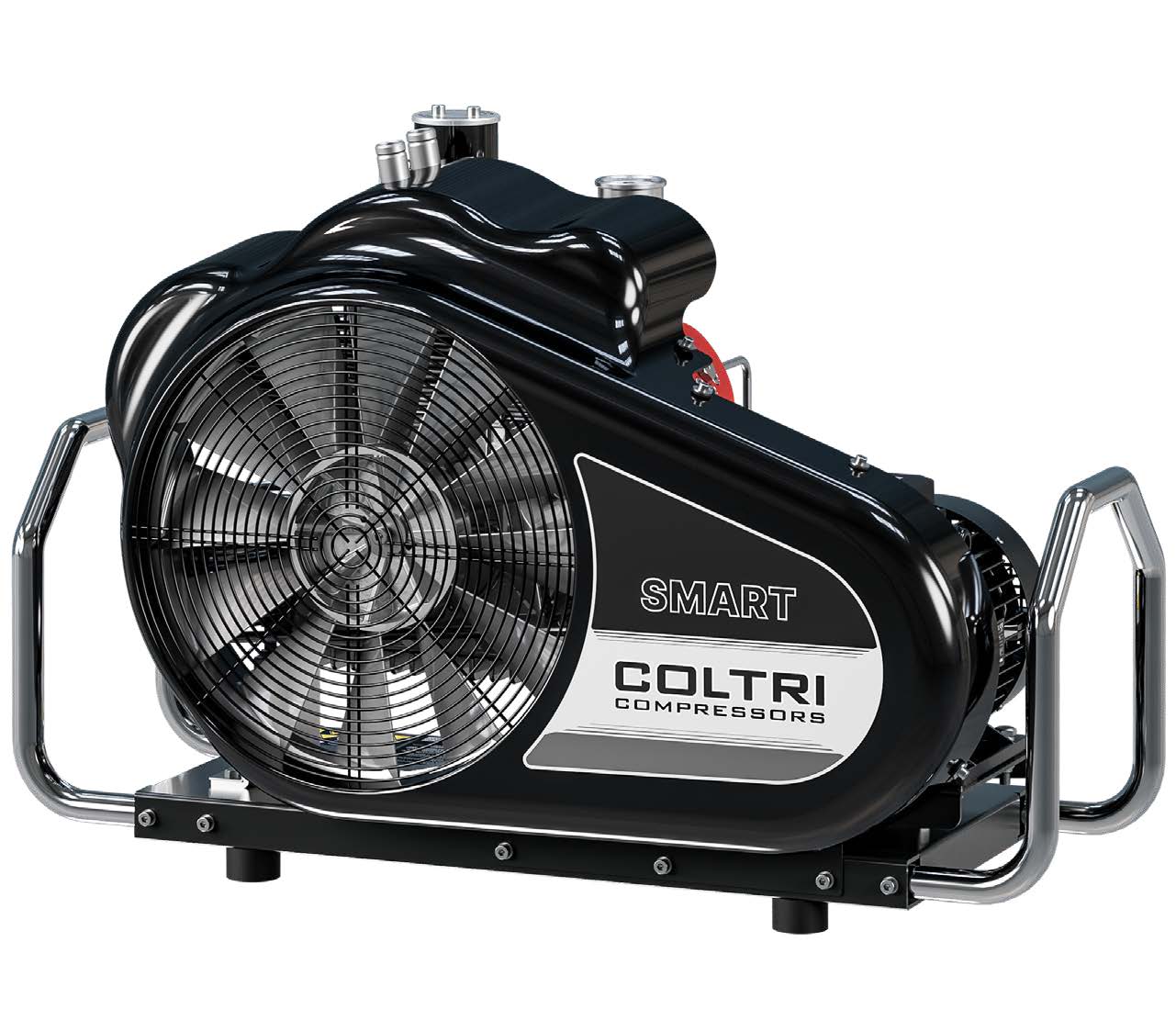

SMART breathing air compressors represent the evolution of the standard, one of the best known and biggest selling models in the world. They are equipped with two connections for high pressure hoses, a single or three phase electric motor, indestructible pumping units and a compact frame with handles for easier transport. Available options: external refilling panels, electrical display with automatic condensate drainage, and autostop pressure gauge.
Technical Data
TECHNICAL DATA
Type of gas: Breathing air EN 12021
Intake pressure: Atmospheric / max 300 millibar
Working pressure: 232 bar / 300 bar / 330 bar
Max working pressure: 232 bar (Single-phase electric) / 420 bar (Three-phase electric)
Permissible ambient temperature range: -10 °C to +40 °C
Permissible altitude: 0 – 1,500 m SLM
Max permissible tilt: 6°
Oil: Synthetic Coltri Oil ST 755
Oil change interval: 1 year / 1,000 h
Frame: Steel – Colour Black RAL 9005 – Powder coating painting – Scratch proof

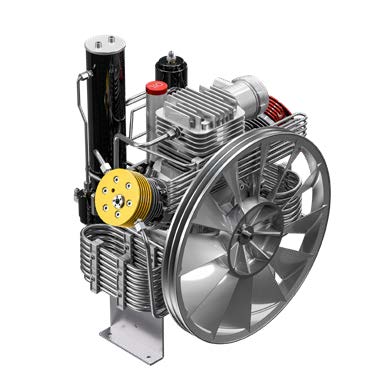

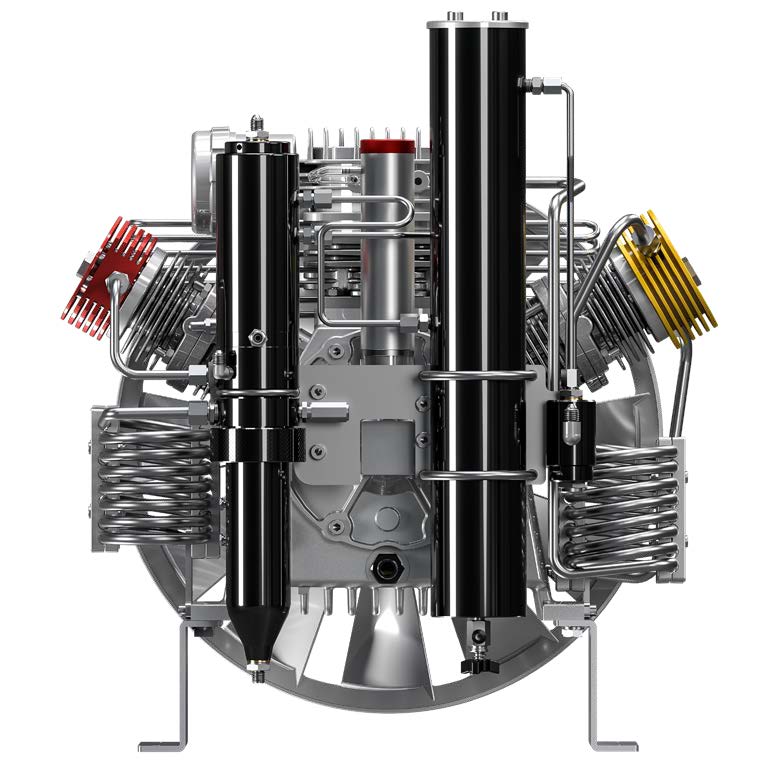

COMPRESSOR
Model: 125 EM
Charging rate: 125 l/min | 7.5 m³/h | 4.4 cfm
Cooling air flow: 1,710 m³/h
Weight: 93 kg (205 lb)
Model: 210 EM
Charging rate: 210 l/min | 12.6 m³/h | 7.4 cfm
Cooling air flow: 1,240 m³/h
Weight: 100 kg (220.5 lb)
Model: 235 ET
Charging rate: 235 l/min | 14.1 m³/h | 8.3 cfm
Cooling air flow: 1,440 m³/h
Weight: 95 kg (209.4 lb)
Model: 270 EM
Charging rate: 270 l/min | 16.2 m³/h | 9.5 cfm
Cooling air flow: 2,180 m³/h
Weight: 105 kg (231.5 lb)
Model: 315 ET
Charging rate: 315 l/min | 18.9 m³/h | 11.1 cfm
Cooling air flow: 2,180 m³/h
Weight: 105 kg (231.5 lb)
Purification system: Maxifilter
Dimensions (W × D × H): 100 × 46 × 70 cm (39.4 × 18.1 × 27.6 in)
Noise level:
• 125 EM / 210 EM / 235 ET: LpA 74.5 dB
• 270 EM / 315 ET: LpA 79.1 dB
Charging rate measured during 10-liter cylinder filling from 0–200 bar with ±5% tolerance at +20 °C ambient temperature.
ELECTRIC MOTOR
Model: 125 EM
Type: Single-phase electric
Power: 3 kW (4 Hp)
Operating voltage/frequency: 230 V, 60 Hz
Rated current: 20 A
Speed: 2,800 RPM
Model: 210 EM
Type: Single-phase electric
Power: 4 kW (5.5 Hp)
Operating voltage/frequency: 220 V, 60 Hz
Rated current: 25.2 A
Speed: 3,450 RPM
Model: 235 ET
Type: Three-phase electric
Power: 5.5 kW (7.5 Hp)
Operating voltage/frequency: 400 V 50 Hz / 440 V 60 Hz
Rated current: 9.7 A
Speed: 2,840 / 3,410 RPM
Model: 270 EM
Type: Single-phase electric
Power: 5.5 kW (7.5 Hp)
Operating voltage/frequency: 230 V, 60 Hz
Rated current: 29.7 A
Speed: 3,510 RPM
Model: 315 ET
Type: Three-phase electric
Power: 5.5 kW (7.5 Hp)
Operating voltage/frequency: 400 V 50 Hz / 440 V 60 Hz
Rated current: 12.6 A
Speed: 2,850 / 3,420 RPM
Protection class: IP55
IP55 protection class compliant with IEC 60034-5 guarantees protection against dust deposits and water jets from any direction.
