Call for Price

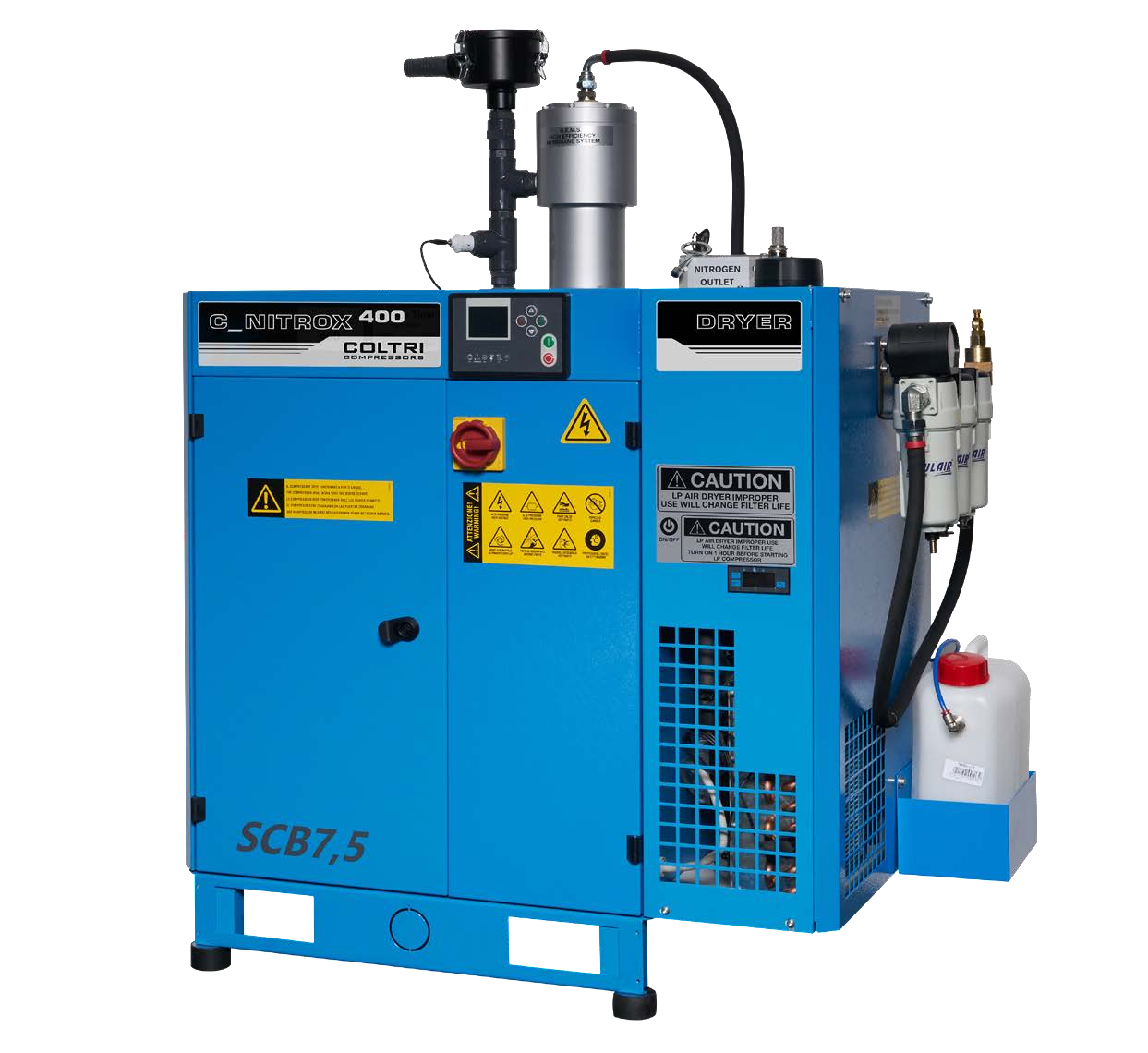

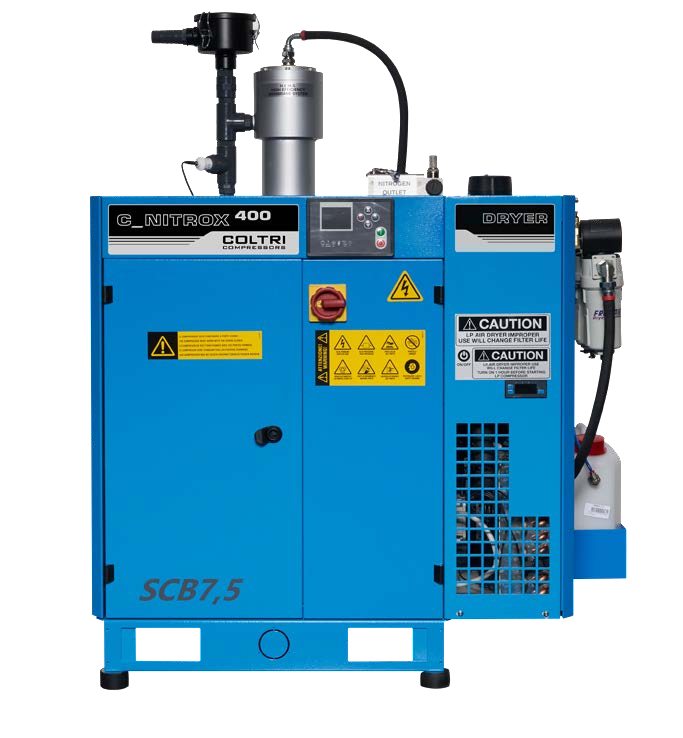

C-NITROX 400 is an Heavy Duty industrial screw compressor that delivers air at a pressure of 10 bar towards a
OXYGEN OXYSEP 7-15-40 membrane that separates nitrogen and oxygen up to a maximum percentage of 40%
of oxygen. The enriched air can be compressed to 232 bar in combination with a high pressure compressor. The
percentage of oxygen obtained at the outlet can be adjusted up to 40% thanks to a valve accessible directly on the
top of the compressor. The oxygen analyzer allows you to check the correct percentage, adjusting it through the
appropriate valve.
The system uses a 7.5 kW , 1,070 l / m , 175 psi ( 12 bar ) screw compressor mounted with a three phase electric motor in a low noise cabinet.
CAPACITY:
2x MCH-16: 660L/min, 02: 32%
1x MCH-23: 380L/min, 02: 36%
1x MCH-16: 330L/min, 02: 40%
| Weight | 80 kg |
|---|
C-Nitrox 400 Technical Data
Gas and Operating Specifications
•
Type of gas: Nitrox 40% max O2
•
Intake pressure: Atmospheric
•
Working pressure: 10 bar
•
Range Oxygen percentages (O2): dal 32% al 40%
•
Permissible ambient temperature range: +5°C to +40°C
•
Permissible altitude: 0 to 1.500 m SLM
•
Max permissible tilt: 5°
•
Oil: Coltri Oil LP 46
•
Oil change interval: 1 year / 2.000 h
Max Oxygen Percentages and High Pressure Compressor Compatibility
•
Max O2: 32% * Compatible Compressor: Heavy Duty 650
◦ Flow rate: 650 l/min | 39 m3/h | 23 cfm
• Max O2: 38%
◦ Compatible Compressor: Heavy Duty 450
◦ Flow rate: 450 l/min | 27 m3/h | 15.9 cfm
• Max O2: 40%
◦ Compatible Compressor: Efficient/Prime
◦ Flow rate: 315 l/min | 18.9 m3/h | 11.1 cfm
Note: Working pressure at 232 bar. With the use of compressors with lower flow rates, the maximum % of O2 is always guaranteed
Compressor Physical Data
• Delivery rate screw compressor: 1.070 l/min | 64.2 m3/h | 37,8 cfm
•
Weight (Standard model): 199 kg (439 lb)
•
Dimensions (Standard model): 98,5 x 72 x 129 cm (38.8 x 28.3 x 50.8 in)
Electric Motor Specifications
•
Type: Three-phase electric
•
Power: 7,5 kW (10 Hp)
•
Rated current: 16,8 A
• Voltage Options:
◦ 400 V, 50 Hz (Speed: 2.850 RPM)
◦ 440 V, 60 Hz (Speed: 3.420 RPM)
•
Note: Different voltage/frequency available on request.
