Coltri Efficient MARK III Silent

£7,835.00 + VAT

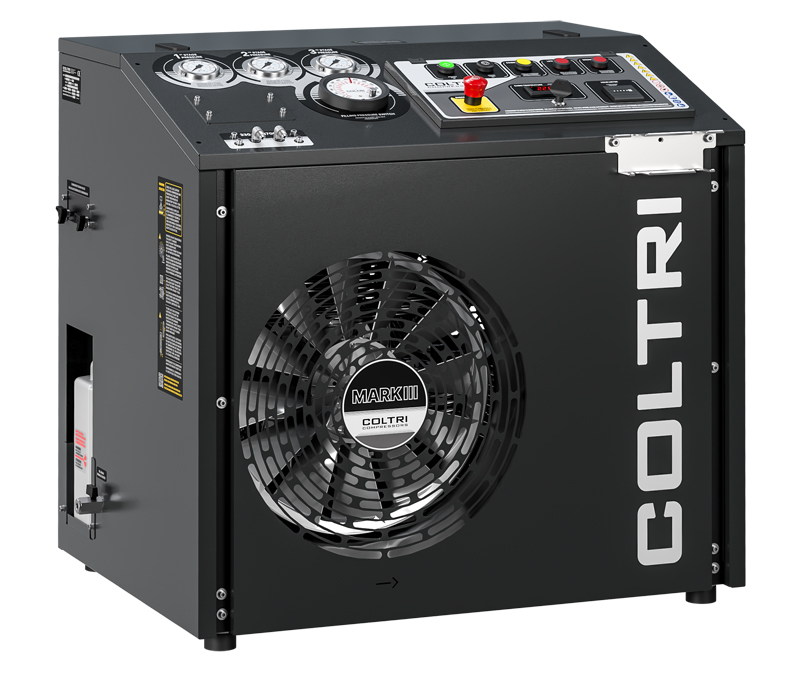

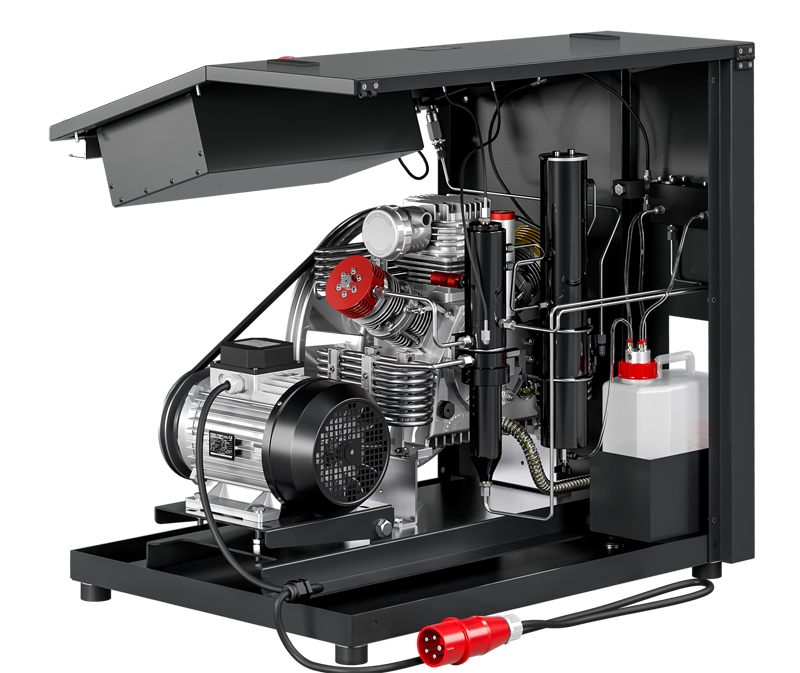

Silenced cab chassis designed and built to facilitate maintenance operations. The tilting motor-holder plate ensures constant V-belt tension.

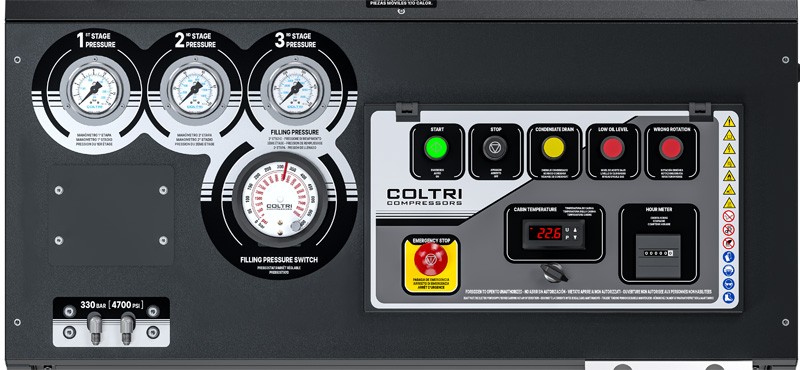

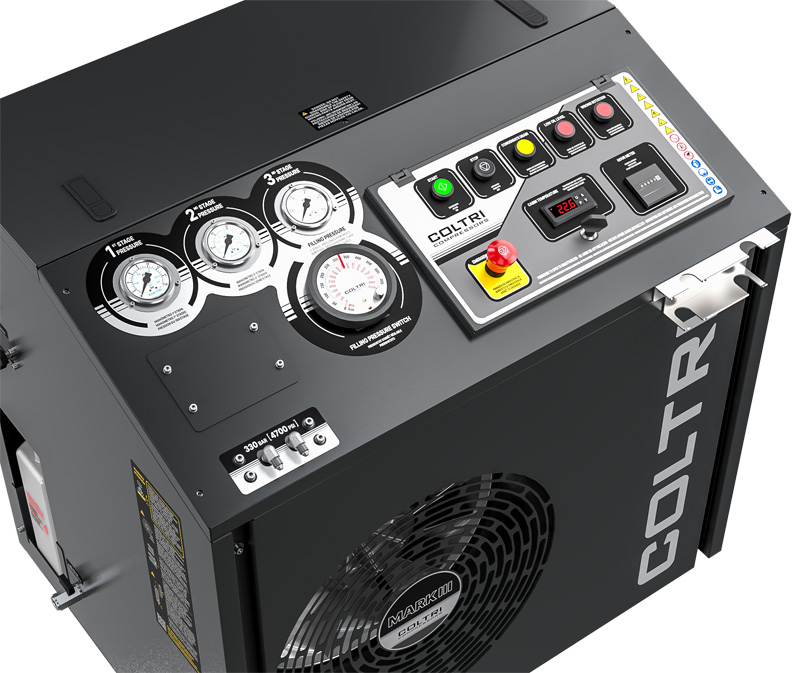

Compressor management and maintenance are facilitated by important devices and tools: the oil level and drain shown outside, the control console equipped with inter-stage pressure gauges, the internal temperature indicator, the presence alarm and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands.

Click to Download Manual

SKU: GT-Coltri-MCH16-ET-ERGO-1 Categories: , ,

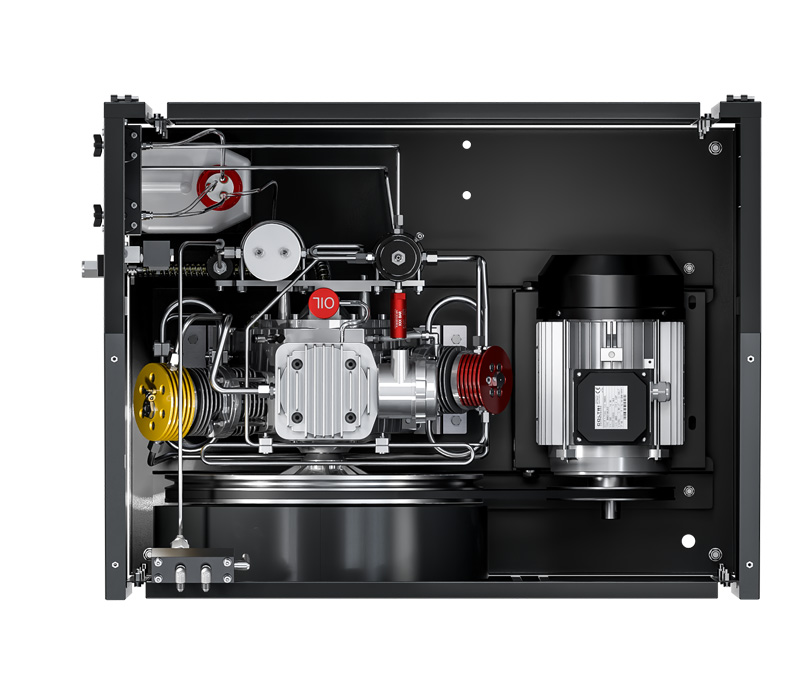

Powered by a three-phase 230V electric motor, this Coltri Efficient line compressor has a monitoring system panel that includes an interstage pressure gauge, autostop with adjustable pressure switch, automatic condensate drain and a phase control for rotation direction. Control is everything. Designed with control systems that allow effective monitoring of operations: interstage pressure, oil level, cabin internal temperature and direction of rotation detector. 3 Stage high – pressure pumping unit.

The Maxifilter purification system enables reliable treatment of breathing air according to DIN EN 12021 when using original filter cartridges.

This model has a charging rate of 315 Bar

Additional information

Weight 200 kg

Specifications

Coltri Mark III Silent

DRIVEN BY: 230V THREE-PHASE ELECTRIC MOTOR
CHARGING RATE: 315 l/min – 18.9 m3/h 11.1 CFM FAD
FILLING TIME*: 6 min. 20 sec.
WORKING PRESSURE: 232 – 300 – 330 bar 3365 – 4351 – 4786 psig
NET WEIGHT APPROX: 169 kg – 372 lb
NOISE: 82.3 dB

*Filling time cylinder 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
